2I110AW
11th Gen Intel® Tiger Lake-UP3, i7 / i5 / i3 / Celeron CPU
1 x DDR4 SODIMM (Max. 32GB)
Multiple Independent display: 4 x HDMI

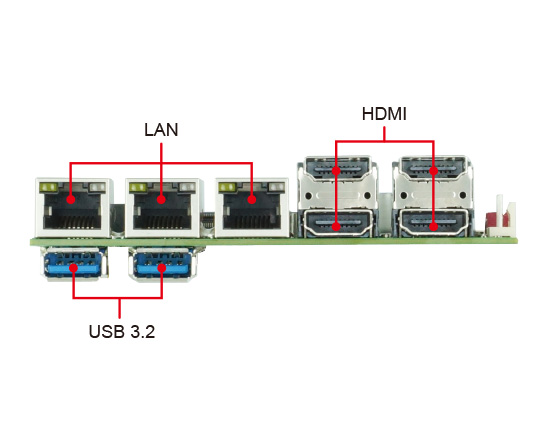

3 x Intel 2.5 GbE LAN, 2 x USB 3.2 (type A), 4 x USB 2.0
2 x COM, 4DI / 4DO, 1 x Nano SIM
1 x M.2 B Key, 1 x M.2 M Key
TPM 2.0, SMBus
1 x DDR4 SODIMM (Max. 32GB)
Multiple Independent display: 4 x HDMI
3 x Intel 2.5 GbE LAN, 2 x USB 3.2 (type A), 4 x USB 2.0
2 x COM, 4DI / 4DO, 1 x Nano SIM
1 x M.2 B Key, 1 x M.2 M Key
TPM 2.0, SMBus

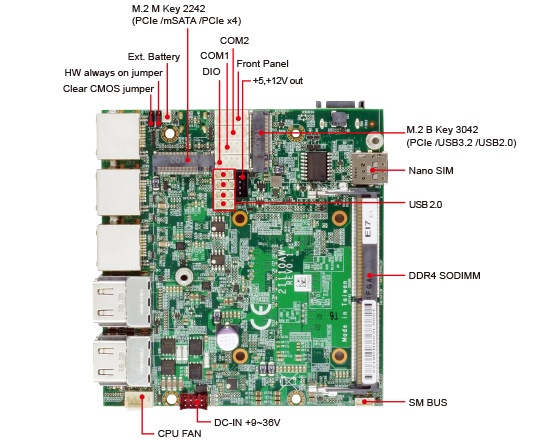

| MODEL | 2I110AW |
|---|---|
| CPU | Intel® Tiger Lake-UP3, i7 / i5 / i3 / Celeron CPU |
| MB Chipset | Intel® Tiger Lake-UP3 SoC |
| Graphics | Intel® UHD Graphics, Support DirectX 12 & OpenGL 4.5 |
| System Memory | 1 x DDR4 3200 MHz SODIMM, Max 32GB |
| Storage | 1 x SATA ports 3.0 Data transfer rates up to 6.0 Gb/s (600 MB/s) 1 x M.2 M key Type 2242 (PCIe x4 ), Support NVMe, -optional to SATA |
| BIOS | AMI UEFI BIOS |
| Display | 4 x HDMI |
| TPM | TPM 2.0 (Firmware) |
| LAN | 3 x Intel 2.5 GbE I225-IT (external) w/Core CPU or 3X I225-V w/Celeron CPU |
| Expansion Interface | 1 x M.2 B key Type 3042 (PCIe x2 / USB 3.2 / 2.0) 1 x M.2 M key Type 2242 (PCIe x4 / SATA), Support NVMe 1 x Nano SIM |
| Expansion Options | CN064 : M.2 B key 2242 to M.2 E Key 2230, WiFi 6 + BT CN067 : M.2 B key 2242 to M.2 B Key 2252, 4G / 5G (3.7V by BOM Control) CN059 : USB to Line-out / Mic- in CC007 : USB to 4 port COM CIO116G : SMBus to 8DI + 8DO PW351 : 1 port PoE PSE PW352 : 2 port PoE PSE PW301 : 802.3AF / AT PD module PW205 : Wide Range power board (9~36V) with power Ignition on/off delay PW206 : 12V / 24V DC to DC Redundant Power Board PW022 : Wide Range power board (24V / 48V) |
| USB | 2 x USB 3.2 (Type A) 4 x USB 2.0 (internal) |
| Serial IO |
2 x RS232 / 422 / 485 (internal) ; eSPI *COM1, COM2 pin9 5V / 12V (Option) |
| GPIO | Hardware digital Input & Output, 4 x DI / 4 x DO |
| SMBus | 1 x SMBus |
| WDT | Hardware Watch Dog Timer, 0~255 sec programmable |
| Power Input | Wide Range DC IN +9~36V |
| Dimension | 2.5" Plus (108 x 102 mm) |
| Operation Temperature (100% CPU Usage) | -40°C~70°C (Core i GRE series CPU) -20°C~70°C (Core i G7E / G7 series CPU) (100% CPU Usage, not-underclocking) |
| Operation Humidity | 5~95%, non-condensing |
| Chassis (OEM I/O Expansion by request) | Box PC: SKY 2, TERA |
| OS Support | Windows® 10 IOT ; Windows® 11 IOT Ubuntu 22.04 above, Fedora 36 above |
