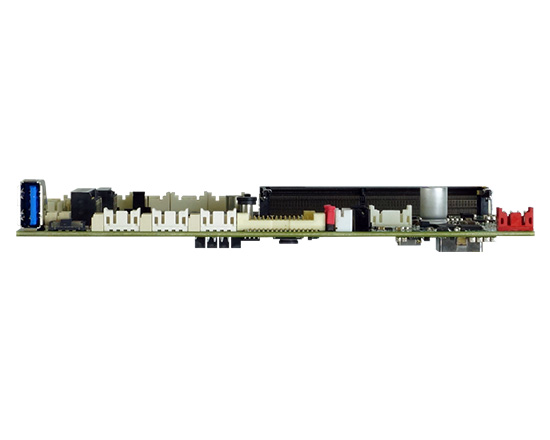

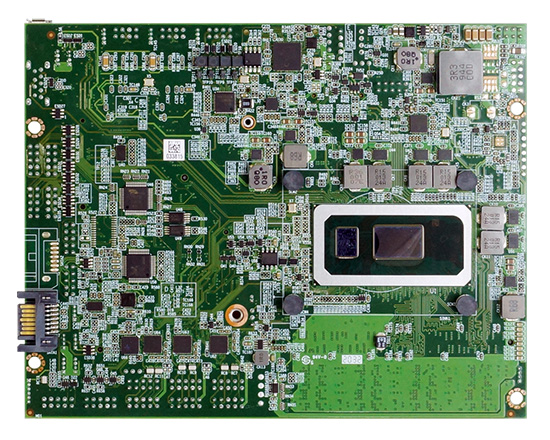

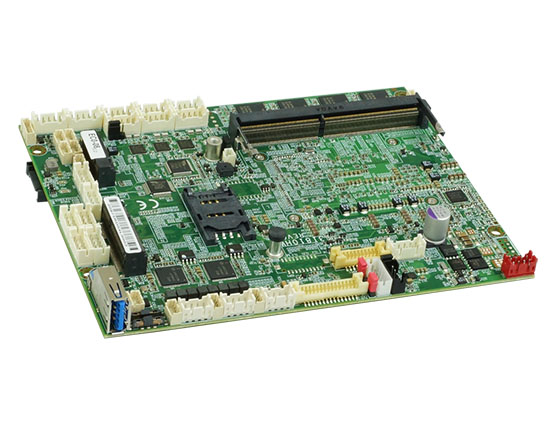

3I810HW

8th Gen Intel® Whiskey Lake-U,
i7 / i5 / i3 / Pentium / Celeron CPU
1 x DDR4 SODIMM (Max. 32GB) ; On board memory (OEM)
Multiple Independent display: VGA, HDMI, LVDS
3 x Intel GbE LAN, 3 x USB 3.0, 4 x USB 2.0
6 x COM, 16DI / 16DO, 1 x Mini PCIe, 1 x SIM, SMBus
1 x M.2 B Key, TPM 2.0 (Optional)
Battery Charger Function (3I810BW)

MODEL	3I810HW / 3I810BW
CPU Type	Intel® Whiskey Lake-U, i7 / i5 / i3 / Pentium / Celeron CPU
MB Chipset	Intel® Whiskey Lake-U SoC
Graphics	Intel® UHD Graphics, Support DirectX 12 & OpenGL 4.5
System Memory	1 x DDR4 SODIMM (Max. 32GB) ; On board memory (OEM)
Storage	2 x SATA ports 3.0 Data transfer rates up to 6.0 Gb/s (600 MB/s) (2nd SATA-OEM) 1 x M.2 B key Type 3042 / 2242 (PCIe x 2 / mSATA / USB 3.0 / USB 2.0) 1 x mini card socket for mSATA (Share SATA2)
BIOS	AMI UEFI BIOS
Display	1 x VGA, 1 x HDMI, Dual Channel, 48 bits LVDS
Touch	USB touch screen controller
TPM	TPM 2.0 (Option)
LAN	1 x Intel GbE I219LM (internal) 2 x Intel 2.5 GbE I225-V (internal)
Audio	High Definition Audio Specification, Support Line-out / Mic-in / Line-in Two channel Class D Audio Amplifier
Expansion Interface	1 x Full size Mini PCIe (PCIe / mSATA / USB 3.0 / USB 2.0) 1 x M.2 B key Type 3042 / 2242 (PCIe x 2 / mSATA / USB 3.0 / USB 2.0) 1 x SIM
Expansion Options	CN064 : M.2 B key 2242 to M.2 E Key 2230, WiFi 6 + BT CN067 : M.2 B key 2242 to M.2 B Key 2252, 4G / 5G (3.7V by BOM Control) CN059 : USB to Line-out / Mic- in CC007 : USB to 4 port COM CIO116G : SMBus to 8DI + 8DO PW351 : 1 port PoE PSE PW352 : 2 port PoE PSE PW301 : 802.3AF / AT PD module PW205 : Wide Range power board (9~36V) with power Ignition on/off delay PW206 : 12V / 24V DC to DC Redundant Power Board PW022 : Wide Range power board (24V / 48V) DP001 : eDP to VGA 　 eDP003 : eDP to DVI 　 eDP004 : eDP to HDMI eDP001 : eDP to LVDS (OEM)
USB	1 x USB 3.0 (external) ; 2 x USB 3.0 (internal) 4 x USB2.0 (internal)
Serial IO	6 x RS232 / 422 / 485 (internal) *COM1~COM6 pin9 5V / 12V (Option)
GPIO	Hardware digital Input & Output, 16 x DI / 16 x DO
SMBus	1 x SMBus
WDT	Hardware Watch Dog Timer, 0~255 sec programmable
Power Input	Wide Range +9~36V (3I810HW) Battery Charger function, DC +19V or +24V (3I810BW)
Dimension	3.5" Plus (146 x 115 mm)
Operation Temperature (100 % CPU Usage)	-20°C~70°C (Core i7 8665UE)
Operation Humidity	5~95%, non-condensing
MTBF	45℃ @ >100,000Hr
Chassis (OEM I/O Expansion by request)	Waterproof System ; Waterproof PPC
OS Support	Windows® 10 IOT ; Windows® 11 IOT (i7 CPU only) Ubuntu 22.04 above, Fedora 36 above
