2I612CW
6th / 7th Gen Intel® Skylake-U /
Kaby Lake-U, i7 / i5 / i3 / Celeron CPU
1 x DDR4 SODIMM socket, Max up to 32GB
Multiple Independent display: 2 x HDMI (OEM to DP), eDP
2 x Intel GbE LAN, 4 x USB 3.0, 3 x USB 2.0, 2 x COM
2 x Mini PCIe, 4 DI / 4 DO, SMBus
TPM 2.0 (Optional)
Kaby Lake-U, i7 / i5 / i3 / Celeron CPU
1 x DDR4 SODIMM socket, Max up to 32GB
Multiple Independent display: 2 x HDMI (OEM to DP), eDP
2 x Intel GbE LAN, 4 x USB 3.0, 3 x USB 2.0, 2 x COM
2 x Mini PCIe, 4 DI / 4 DO, SMBus
TPM 2.0 (Optional)
| MODEL | 2I612CW |
|---|---|
| CPU | Intel® Skylake-U / Kaby Lake-U i7 / i5 / i3 / Celeron CPU |
| MB Chipset | Intel® Skylake-U / Kaby Lake-U SoC |
| Graphics | Intel® HD Graphics, Support Direct X 12 & OpenGL 4.4 / 4.5 |
| System Memory | 1 x DDR4 1866 / 2133 MHz SODIMM, Max.32GB |
| Storage | 1 x SATA ports 3.0 Data transfer rates up to 6.0 Gb/s (600 MB/s) 1 x mini card socket for mSATA |
| BIOS | Insyde UEFI BIOS |

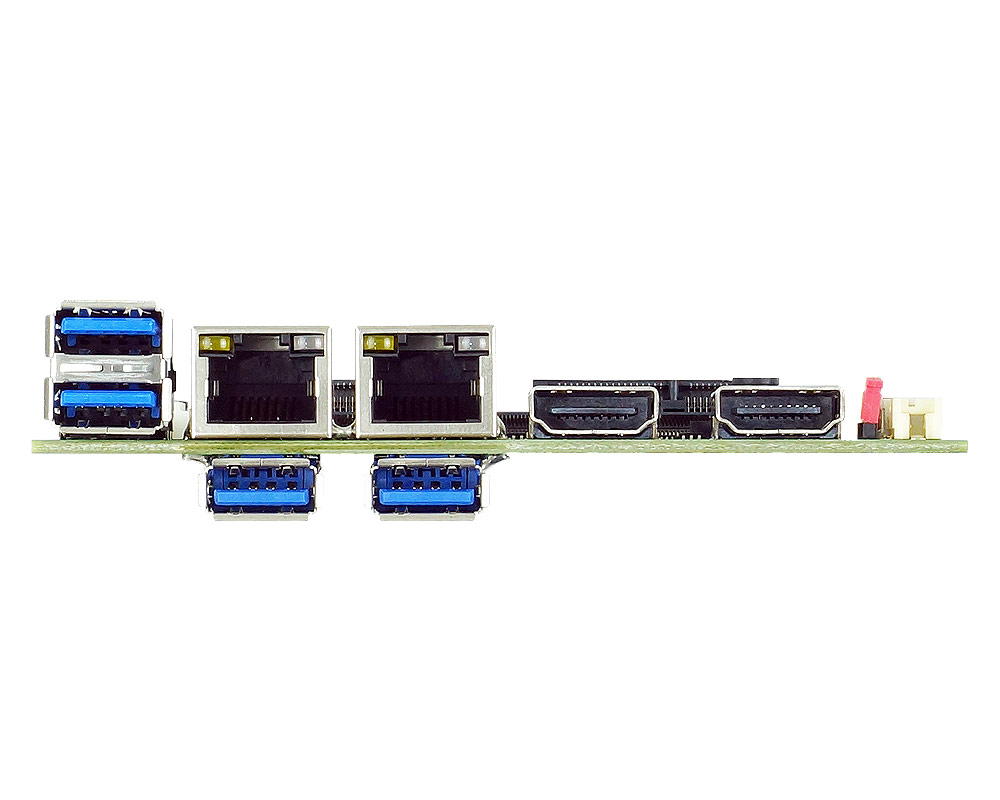

| Display | 2 x HDMI (OEM to DP) 1 x eDP |
| TPM | TPM 2.0 (Option) |
| LAN | 2 x Intel GbE (external) |
| Expansion Interface | 1 x Full size Mini PCIe (mSATA / USB) 1 x Full size Mini PCIe (PCIe / USB 2.0) |
| Expansion Module |
Converter Card : CN066: Mini PCIe to M.2 E key 2230, WiFi 6 + BT Mini Card : GPS, 3G / 4G, WI-FI, 2 / 4 x LAN, 4 x COM, CANBus, SDI / AHD Video |
| USB | 4 x USB 3.0 (external) ; 3 x USB 2.0 (internal) |
| USB Expansion | USB to : COM, Mini Card, M.2, Audio board |
| Serial IO |
2 x RS232 / 422 / 485 (internal) *COM1, COM2 pin9 5V / 12V (Option) |
| GPIO | Hardware digital Input & Output, 4 x DI / 4 x DO |
| SMBus | 1 x SMBus |
| WDT | Hardware Watch Dog Timer, 0~255 sec programmable |
| Power Input | Wide Range DC in +9V~36V |
| Dimension | 2.5" Plus (110 x 92 mm) |
| Operation Temperature (100 % CPU Usage) |
-20°C~70°C (Core i7 6600U) |
| Operation Humidity | 5~95%, non-condensing |
| MTBF | 45℃ @ >100,000Hr |
| OS Support |
7th Generation Intel® Core™ Processor family: Kaby Lake Windows® 10 IOT (64bit), 6th Generation Intel® Core™ Processor family: Skylake Windows® 10 IOT (64bit), Windows® 8.1 (64bit), Windows® Embedded 8 Standard (64bit), Windows® 7 (64bit), Windows® Embedded Sta 7 (64bit), |
| Chassis (OEM I/O Expansion by request) | Box PC: SKY 2, TERA |
