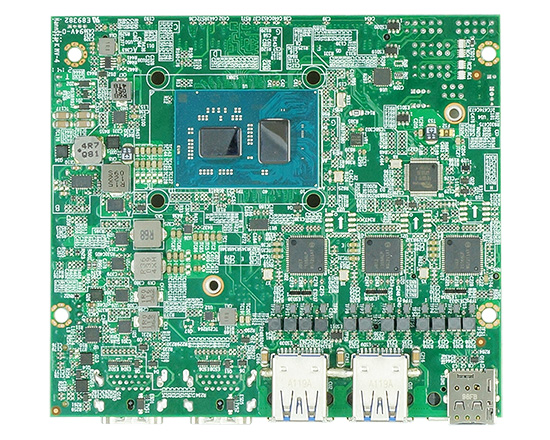

2I640DW

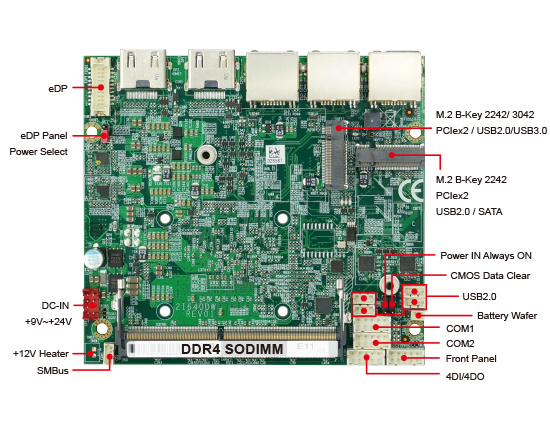

1 x DDR4 SODIMM socket, Max. 32GB
Independent display: 2 x HDMI (OEM to DP), 1 x eDP

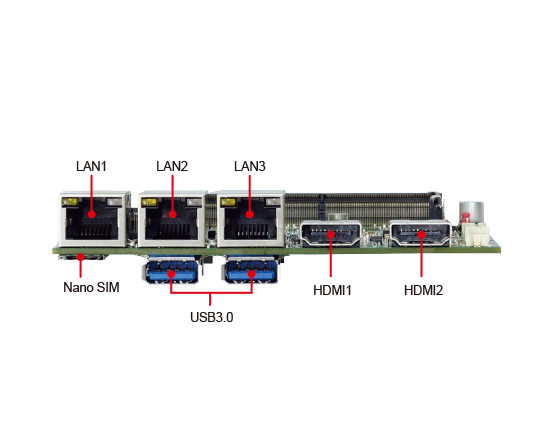

3 x Intel 2.5 GbE LAN, 2 x USB 3.0, 3 x USB 2.0
2 x COM, 4DI / 4DO, 2 x M.2, 1 x Nano SIM
TPM 2.0, SMBus
| MODEL | 2I640DW |
|---|---|
| CPU | Intel® Elkhart Lake ATOM x6413E Quad Core 3.0 GHz CPU Intel® Elkhart Lake Celeron J6412 Quad Core 2.6 GHz CPU |
| MB Chipset | Intel® Elkhart Lake SoC |
| Graphics | Intel® HD Graphics, Support DirectX 12.1 & OpenGL 4.5 |
| System Memory | 1 x DDR4 3200 MHz SODIMM, Max. 32GB |
| Storage | 1 x M.2 B Key Type 3042 / 2242 PCIe-SSD 1 x M.2 B Key Type 2242 SATA-SSD |
| BIOS | Insyde UEFI BIOS |
| Display | 2 x HDMI (OEM Option to DP), eDP |
| TPM | TPM 2.0 (Firmware) ; OEM Optional to Hardware TPM |
| LAN | 3 x Intel 2.5 GbE I225 (external) |
| Expansion Interface |
1 x M.2 B Key Type2242 / 3042 (PCIe x2 / USB 3.0 / USB 2.0), 1 x Nano SIM |
| Expansion Options |
CN064 : M.2 B key 2242 to M.2 E Key 2230, WiFi 6 + BT |
| USB | 2 x USB 3.0 (external) ; 3 x USB 2.0 (internal) |
| Serial IO |
2 x RS232 / 422 / 485 (internal) *COM1, COM2 pin9 5V / 12V (Option) |
| GPIO | Hardware digital Input & Output, 4 x DI / 4 x DO |
| SMBus | 1 x SMBus |
| WDT | Hardware Watch Dog Timer, 0~255 sec programmable |
| Power Input | Wide Range +9~24V |
| Dimension | 2.5" Plus (110 x 98 mm) |
| Operation Temperature | -20°C~70°C (100 % CPU Usage) -40°C by OEM Option |
| Operation Humidity | 5~95%, non-condensing |
| Chassis (OEM I/O Expansion by request) | Box PC: SKY 2, TERA |
| OS Support | Windows® 10 IOT ; Windows® 11 IOT Ubuntu 22.04 above, Fedora 36 above |
